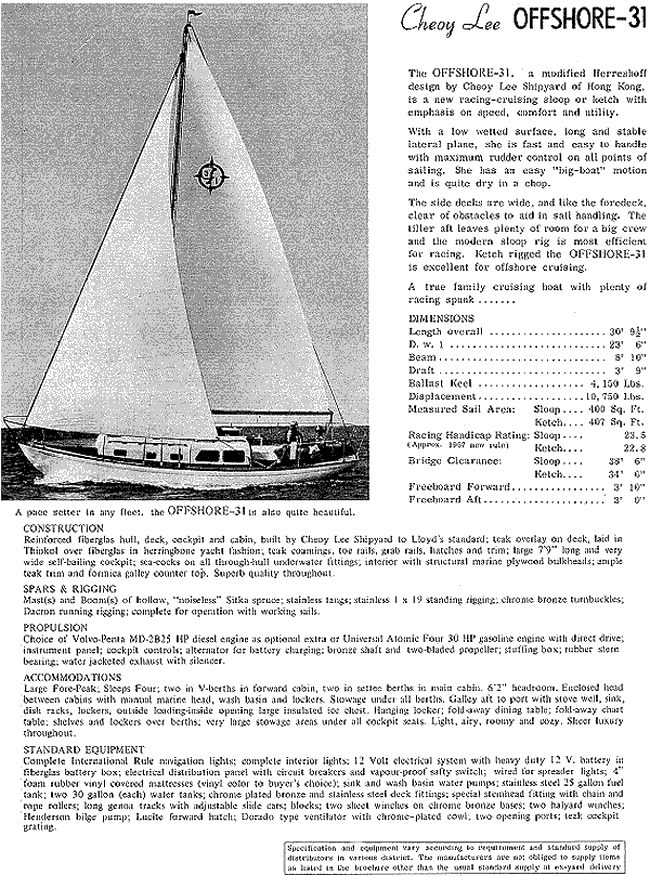

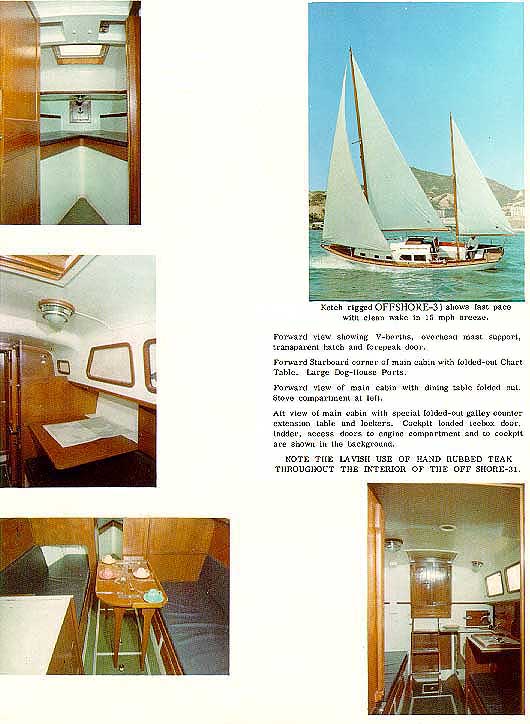

are scans from original brochure.
The brochure sent in to us was a photocopy so quality has suffered
somewhat. All images can be clicked for decent low resolution
view, app. 35k file size. I have started rescanning brochures I
have to place on website full printable images from brochures.
See below fur full size sail plans of Offshore 31. james.....
Sail Plans (Sloop & Ketch) plus floor

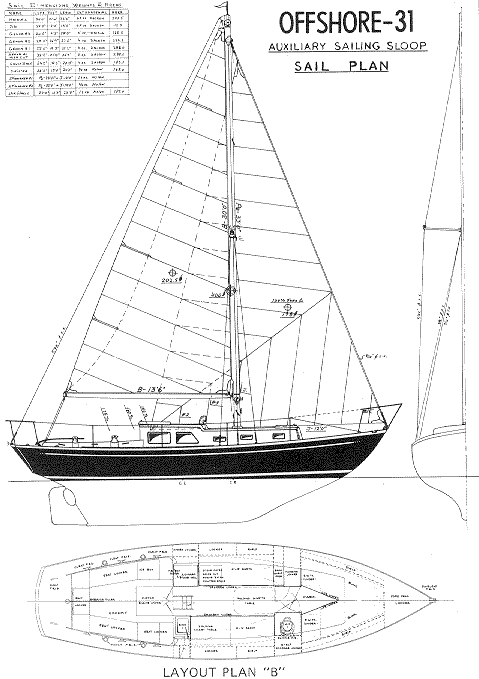

Here for full printable image of Sloop Sail Plan (157k file size)

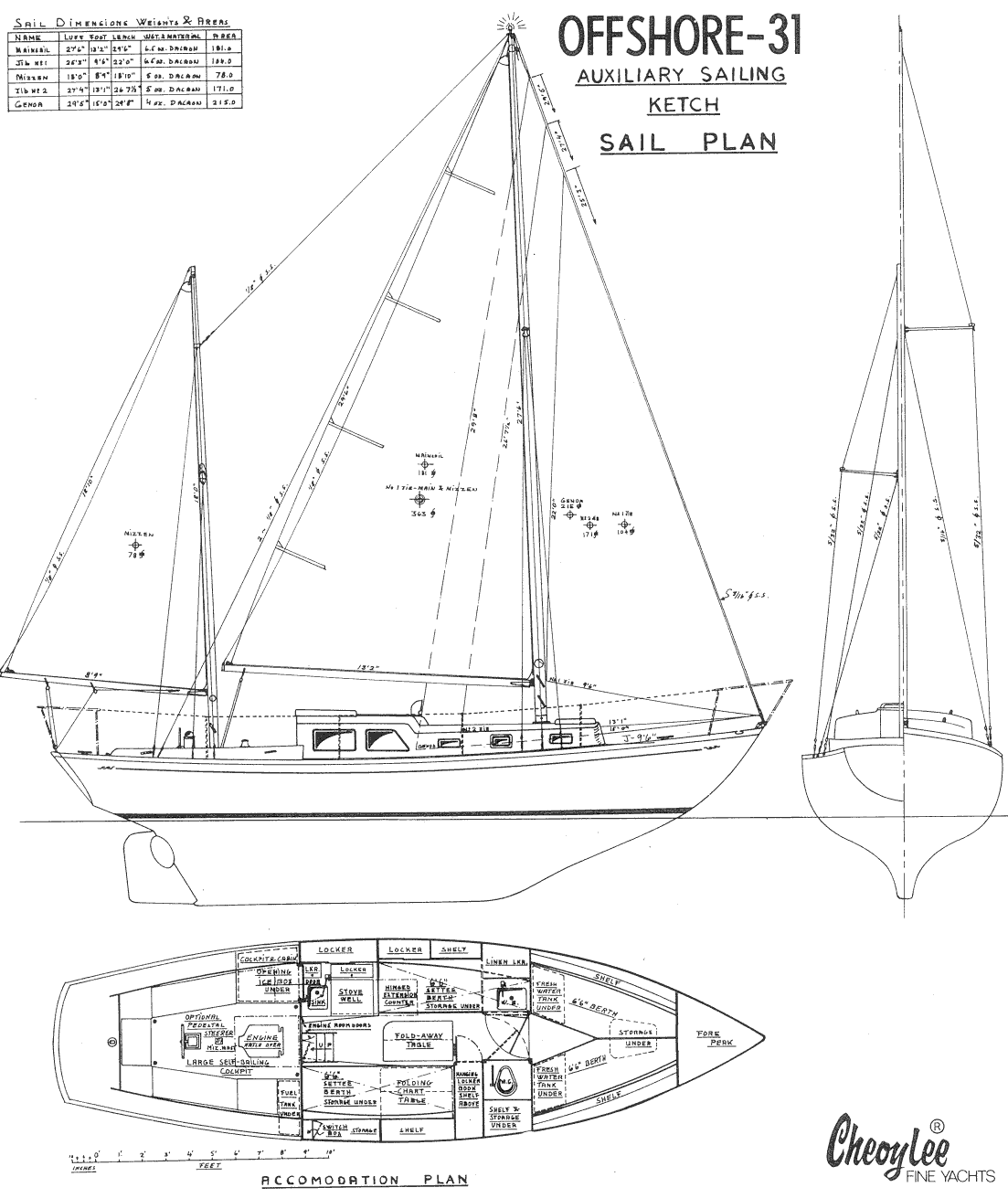

for Ketch Sail Plan (74k file size)
for Frank Truncale's website with cad drawings of chainplates for
LWL: 23' 4"
Power: Palmer M60 or Atomic
Sail Area: 424 sq'
Current Market Prices I have seen on web:
$22 - $28,000

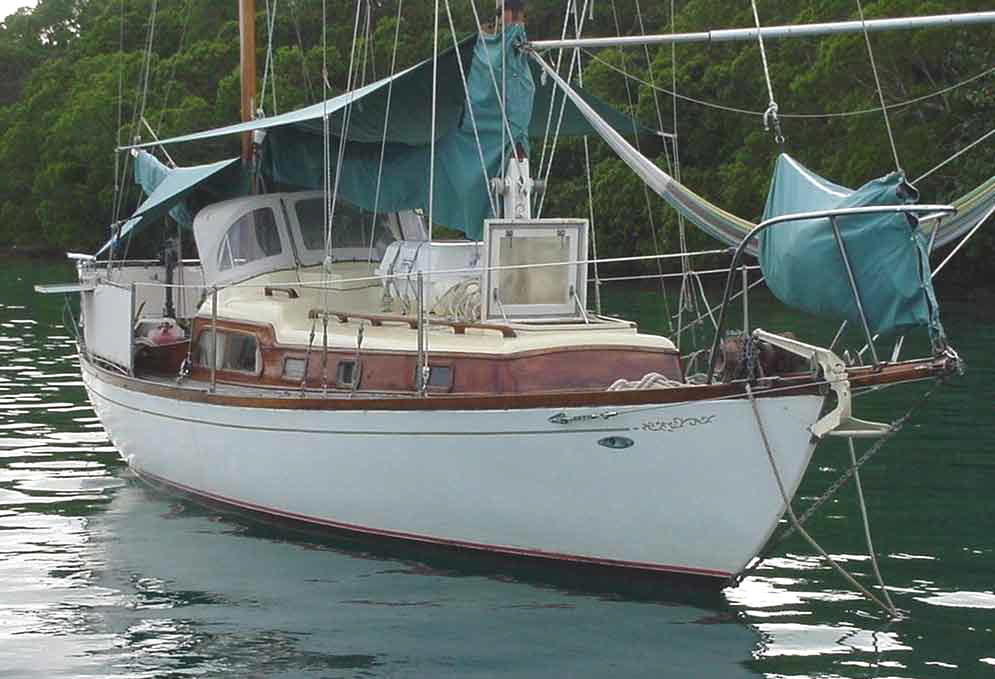

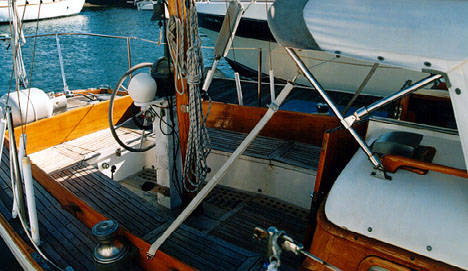

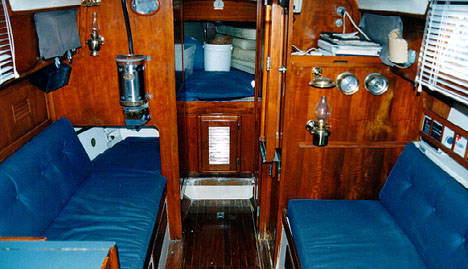

Some Pics from ads on Web
Paul & Kate DeMay have been told
by the company that 150 Offshore 31 models were produced
Spears wrote in that the Offshore 31 was a development of the Bermuda 30,
Lengthened 1' 2", with the Bermudas transom hung rudder moved inboard
and wheel steering added.
